fermat spiral

Posted by Emilio on Mar 15, 2012

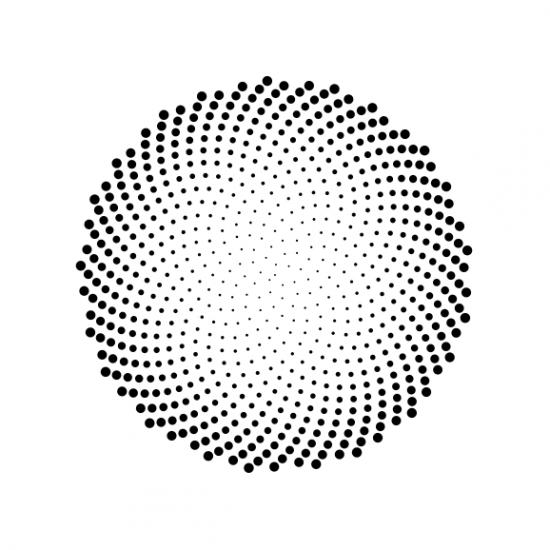

my first attempt to reproduce a fermat spiral in nodebox.
work inspired by this applet built in processing.

import math
from math import *

size(150, 150)

a=2

var("seeds", NUMBER, 100, 20, 1000)
semi = int(seeds)

var("angle", NUMBER, 2.39983333, 0, 6.28320000)
#angle = 1.5708 # = 90°

var("dim", NUMBER, 1, 0, 2)

var("dif", NUMBER, 0, 0, 0.01)


var("goldenRatio", BOOLEAN, False)
if goldenRatio:
    angle = 2.39983333

print "---"
print "angle", angle
print "seeds", semi

translate (WIDTH/2, HEIGHT/2)

for i in range(semi):
    x = a* sqrt(i) * cos(i* angle)
    y = a* sqrt(i) * sin(i* angle)

    rr = dim+(i*dif)

    oval(x-(rr/2), y-(rr/2), rr, rr)
