Import MIDI files into NodeBox 3

12 Nov 2012

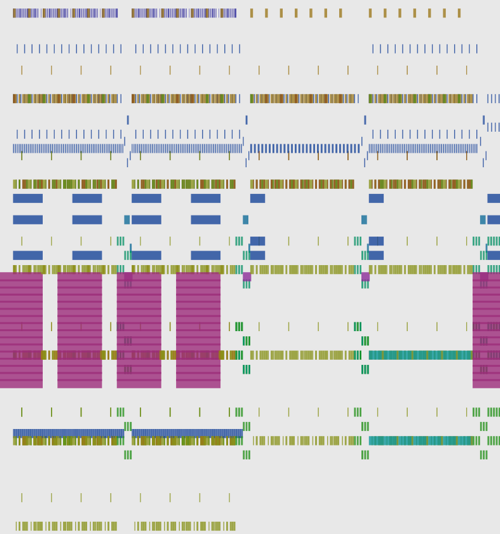

For a recent data visualisation workshop in The Hague, we needed a way to import MIDI files into NodeBox 3.

MIDI has some “interesting” properties: each note is stored as two separate “on” and “off” events that need to be matched up to find the duration. Getting this right is non-trivial; that’s why this work might be interesting to other people as well.

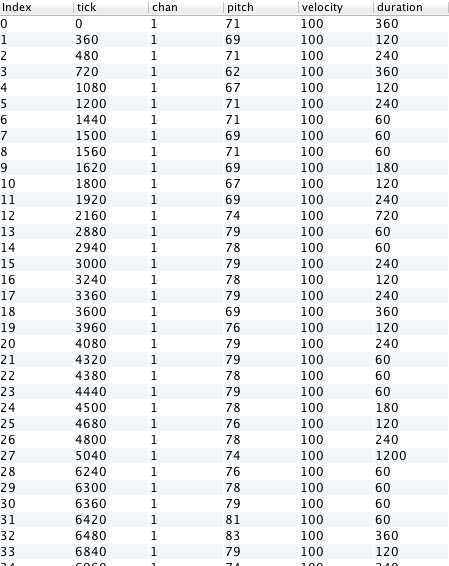

MIDI data comes into NodeBox as a standard table (similar to CSV data), and individual columns can be selected using the lookup node.

Download the script.
